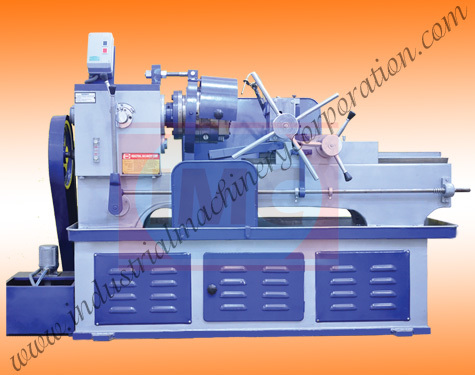

Scaffolding Pipe Threading Machines

Scaffolding Pipe Threading Machines
Scaffolding Pipe Threading Machines
Product Code : 10
Product Description

With the help of our competent professionals and state-of-the-art infrastructure facilities, we pertain to manufacturing, supplying and exporting Pipe Thread Cutting Machine. Having a thread capacity up-to 650mm, our machine is used for threading different plastic pipes with utmost perfection. Widely recommended for longer threads, this machine comes in different models and specifications. Offered Pipe Thread Cutting Machine is acknowledged for high efficiency, rigid body construction, longer service life, low maintenance and trouble-free operations.

Other details:

Scaffolding Pipe Thread Cutting Machine is use to cut the external threads with the help of Tangential chaser. Chaser is use as a cutter in thread cutting machine. Component remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads. The Scaffolding pipe thread cutting machine mainly consists the following

  • Base
  • Head Stock
  • Saddle
  • Bed or Pillar Type Clamping Vice
  • Die Head.

THREAD CUTTING MACHINES are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. All the necessary requirements are combined in this model to from the basic fundamentals of correct threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally the are built with high standards of workmanship, material and quality so closely associated with COMPANY TRADITION.

DESIGN & WORKMANSHIP: The Industrial Machinery Corporation thread cutting machines are designed to produce quality threads within the tolerance for which they were intended.

HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.

THE BED: The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.

THE SADDLE: The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.

The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It's all gears are made of best quality steel.

VICE JAWS: The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.

Range of IMC Scaffolding Thread Cutting Machines and Die Heads.

1/2" to 2.1/2" do/-

Specifications of Scaffolding Pipe Thread Cutting Machine

Model

1/2" to 2.1/2" (Pillar Type)

Saddle Movement

Upto 27"

Spindle Speed Range

54-85

Number of Spindle Speed

2

Threading Capacity

1/2" to 2.1/2"

Production per Hour

25-30

H.P. Required

7.5 H.P. 960 RPM

Lead Screw

Provided

Weight (KG) Aprox.

1200



INDUSTRIAL MACHINERY CORP.
E452, K-6 Focal Point, Ludhiana - 141002, Punjab, India
Mr. Davinder Singh (Proprietor)
