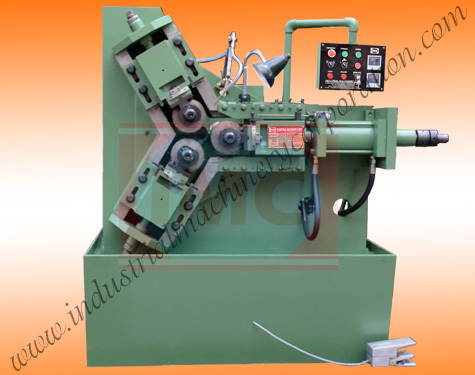

Hydraulic Thread Rolling Machines 3 Roll

Hydraulic Thread Rolling Machines 3 Roll
Hydraulic Thread Rolling Machines 3 Roll
Product Code : 14
Product Description

Through the meticulousness of our competent professionals, we endeavor to manufacture, supply and export high quality Automatic Thread Rolling Machine. Available in 2 and 3 roller types, our machine is ideally used for geometrical works like rolling of circular threads with high precision and perfection. Our clients can procure this machine is different motor capacities, die diameters and blade dimensions as per their requirements. The Automatic Thread Rolling Machine is highly acknowledged for robust construction, high accuracy and optimal performance.

Other details of Thread Rolling Machine:

IMC Hydraulic Pipe Thread rolling machines are used to produce high quality screws and other small tools and components. They are ideal for high volume production, are highly economical and ensure excellent dimensional accuracy. Industrial Machinery Corporation is a well known hydraulic machines manufacturer, supplier and exporter of Hydraulic Rolling Machines-Two Roll Types, Hydraulic Rolling Machines-Three Roll Types, etc. These hydraulic machines are ideal for mass production purposes and help in creating the best surface finishes.

The 3 rollers IMC-3R Hydraulic Pipe thread rolling machine operates hydraulically. The simultaneously and concentricity of three forces at 120 assure stability of the work piece during the rolling and as a consequence the maximum geometrical precision of the work piece. The elimination of the support blade consents a better finishing of the piece and the execution of particularly delicate profiles. The hydraulic thread rolling machine is suitable for rolling pipes, rolling bolts, lapping work with a high class precision and for mass production of Scaffolding pipe jack and solid jacks screws etc.

The maximum values specified above can not be achieved simultaneously.

Technical Specifications

Model


IMC-3R-25

IMC-3R-50

IMC-3R-75

Work Range

Out Side Diameter
Thread Length in Feed
Thread Length Through Feed

(8-25 MM) (1/2"- 1")
(38 MM) (1.1/2")
(Indefinite) (Indefinite)

(25-50 MM) (1"- 2")
(50 MM) (2")
(Indefinite) (Indefinite)

(32-75 MM) (1.1/4"- 3")
(75 MM) (3")
(Indefinite) (Indefinite)

Roll Dies

Max. Out Side Dia.
Max. Inside Dia
Spindle Box

140
60
40

140
60
40

170
80
54

Motor

For Roll Spindle

3 H.P.

3 H.P.

7.5 H.P.

3 Phase AC

For Hydraulic System

1 H.P.

1 H.P.

3 H.P.

Coolant Pump


0.1 H.P.

0.1 H.P.

0.1 H.P.
