Bar Threading Machines

Bar Threading Machines
Bar Threading Machines
Product Code : 01
Product Description

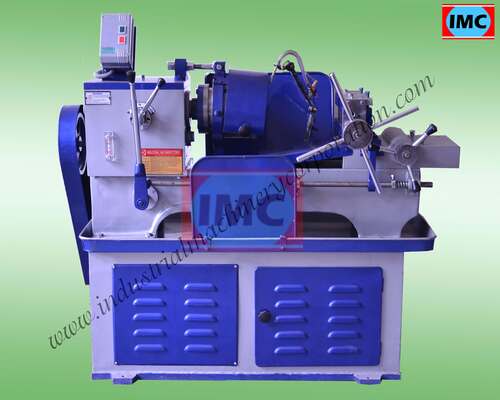

Bar Threading Machine

The Bar Threading Machine is use to cut the external threads on the bar with the help of Tangential chaser. Bar Thread cutting Chaser is use as a cutter in machine. Bar remain still, Die-head rotates. Different types of threads can be cut on the bar such as BSW, NPT, UNF, METRIC, UNC, ACME, BSF Threads etc.

Such a company will offer you the amenity of customization, wherein the bar thread cutting machinery will be designed and fabricated as per your specifications. These can vary on aspects such as saddle movement, range of spindle speed, capacity , the number of units a it can produce in an hour and the requirement of power to operate the machinery.

As is the case with most bar threading machinery, this one too works with sub parts such as saddles, aprons and beds. These are all designed and fitted in such a manner that they provide hassle free operation and require minimal attention, post purchase. This not only ensures actual value for money, but also reduces the time spent on regular maintenance and servicing.

Range of IMC Bar Threading Die-Head.

  • 1/4" to 1"
  • 3/8" to 1.1/2"
  • 1/2" to 2.1/2"



Model

1/4" to 1" (Bed Type)

3/8" to 1.1/2" (Bed Type)

1/2" to 2.1/2"  (Bed type)

Saddle Movement

10"

10" - 12"

12" - 16"

Spindle Speed Range

60-90

60-90

60-90-120

Number of Spindle Speed

2

2

3

Threading Capacity

1/4" to 1"

3/8" to 1.1/2"

1/2" to 2.1/2"

Production per Hour

60-80

60-80

70-90

H.P. Required

3 H.P.

3 H.P.

7.5 H.P.

Lead Screw

Optional

Optional

Optional

Weight (KG) Aprox.

500

550

990
